Fully Automated Flour, Sugar & Liquid Integration for High-Efficiency Production
A modern biscuit manufacturing plant demands precision, hygiene, automation, and cost efficiency. The Raw Material Handling System for Biscuit Manufacturing Plant is an engineered, fully integrated solution that ensures seamless handling of flour (maida), sugar, palm oil, liquid syrup, lecithin, and minor additives — from receipt to dough mixer feeding.
Designed for 1 TPH to 20+ TPH capacities, this biscuit plant material handling system eliminates manual errors, reduces dust loss, ensures accurate batching, and improves overall plant ROI.
Whether you are setting up a new plant or upgrading an existing biscuit factory, this integrated solution delivers consistency, hygiene compliance, and long-term operational reliability.
Why an Integrated Raw Material Handling System is Critical in Biscuit Plants
Traditional material handling methods rely heavily on manual transfer, open feeding systems, and inconsistent dosing. These lead to:
- 3–5% material loss
- Batch inconsistency
- Dust contamination
- Higher manpower dependency
- Frequent downtime
An automated flour handling system for biscuit plant operations ensures:
- Enclosed pneumatic conveying
- Accurate load cell-based batching
- Temperature-controlled liquid dosing
- Reduced contamination risk
- Lower operational cost
This engineered integration transforms raw material movement into a streamlined, controlled, and traceable process.
1. Maida (Flour) Handling System
Hygienic & Dust-Free Flour Transfer System
Flour is the primary ingredient in biscuit production. Any inconsistency in handling directly impacts product quality.
Step 1: Raw Material Receipt Options
- 25 kg / 50 kg bag dumping station
- Bulk tanker unloading system (recommended for high-capacity plants)
For large-scale operations, bulk tanker unloading offers superior cost efficiency by reducing labor dependency and handling losses.
Step 2: Bag Dump Station – Operator Safe & Dust Controlled
Equipped with:
- Hydraulic tilting mechanism
- In-built dust collector
- Magnetic separator

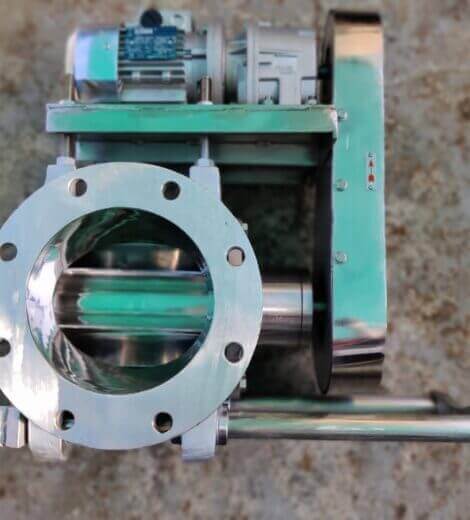

- Rotary airlock valve
- Controlled discharge system
Step 3: Pneumatic Conveying System
The flour handling system for biscuit plant uses positive pressure pneumatic conveying for enclosed and hygienic transfer to storage silos.
Benefits include:
- Zero spillage
- Flexible routing
- Reduced cross-contamination
- Energy-efficient transfer
Step 4: Food-Grade Storage Silo Engineering
Storage silos are designed with:
- SS construction or epoxy-coated MS
- Vent filters with pulse jet cleaning
- Load cells or level indicators
- Aeration pads
- Bin activator
- Rotary discharge valve
Engineering advantages:
- Prevents bridging & rat-holing
- Ensures smooth discharge
- Reduces downtime
Step 5: Vibro Shifter & Weigh Hopper
Before feeding to the dough mixer, flour passes through:
- Vibratory sieve (Vibro Shifter)
- Intermediate hopper with level sensor
- Load cell-based weigh hopper
- PLC-controlled batching system
This guarantees uniform particle distribution and precise recipe-based dosing.
Result: Consistent dough texture and improved biscuit quality.
2. Sugar Handling & Grinding System
Controlled Sugar Fineness for Different Biscuit Applications
Step 1: Sugar Bag Feeding
- 25/50 kg bags
- Bag tilting station
- Bag dump station with dust extraction
Step 2: Grinding System Depending on required fineness for the Biscuits type:
Sugar fineness significantly affects biscuit texture and creamer smoothness.
A: Universal Mill (UM)
- Suitable for regular biscuit production
- Grinding up to 100 mesh
- Designed for 10 Bar safety
- High-efficiency performance
B: Air Classifier Mill (ACM)
For cream and sandwich biscuit lines:
- Ultra-fine grinding up to 200 mesh
- Adjustable classifier wheel
- Closed-loop temperature control
- Dust-free collection via bag filter
The sugar grinding system for biscuit industry applications using ACM ensures:
- Smooth creamer texture
- Uniform filling consistency
- Controlled temperature
- Minimal material loss
Step 3: Fine Sugar Integration to Dough Mixer
- Intermediate hopper with bin vent filter
- Rotary airlock valve
- Load cell-based weigh hopper
- Creamer tank with high-speed agitator
- Water jacket temperature control
This integrated batching system ensures consistent viscosity and stable emulsification before entering the dough mixer.
3. Liquid Preparation & Dosing System
Liquid ingredients demand accurate temperature control and precision dosing.
A: Palm Oil Handling System
- Tanker unloading using shuttle block pump
- Insulated storage silo with heating
- Rockwool insulation & aluminum cladding
- Heated intermediate oil tank
- Load cell-based batching vessel
Prevents solidification and maintains proper viscosity.
B: Liquid Sugar Syrup System
- Invert syrup preparation tank
- Heating jacket & agitator
- Strainer for impurity removal
- Cooling tank for process temperature stabilization
Ensures uniform concentration and controlled feeding.
C: Lecithin & Chemical Dosing System
- Heated storage tank with heat tracing
- Fine strainer protection
- Precision metering pumps
- SS316 dosing tanks
- PLC-controlled injection
Minimizes wastage and maintains formulation accuracy.
D: Creamer Tank Integration
All measured ingredients are mixed in a creamer tank equipped with:
- High-speed agitator
- Homogeneous blending
- Phase separation prevention
The final mixture is transferred to the dough mixer under controlled parameters.
PLC-Based Biscuit Plant Automation System
Automation is the backbone of modern biscuit processing plants.
Our biscuit plant automation system includes:
- PLC-based batch control
- SCADA monitoring
- Recipe management system
- Load cell-based batch traceability
- Alarm & diagnostics
- Real-time monitoring
Benefits:
- Repeatable production quality
- Reduced human error
- Data logging & compliance readiness
- Industry 4.0 integration capability
Technical Specifications (Typical)
- Capacity Range: 1 TPH – 20+ T PH
- Material Contact Parts: SS304 / SS3 16
- Material Loss: < 1%
- Automation: PLC + SCA DA
- Power Optimization: Energy-efficient driv es
- Dust Control: Integrated dust collection syste ms
Business Impact & ROI
| Parameter | Conventional System | Engineered Integrated System |
|---|---|---|
| Product Quality | Inconsistent | Highly Consistent |
| Labour Requirement | High | 20–30% Lower |
| Material Loss | 3–5% | < 1% |
| Maintenance Cost | High | Reduced |
| Hygiene Compliance | Moderate | Food-Grade Ready |
| ROI | Slow | Faster Payback |
The integrated raw material handling system for biscuit manufacturing plant significantly lowers operational cost while increasing productivity.
Key Advantages
- Dust-free environment
- Spillage-proof system
- Contaminant-free flour screening
- Advanced sugar grinding system
- Temperature-controlled liquid handling
- Reduced energy consumption
- Minimal manpower requirement
- Equipment safety
- Batch accuracy
- Long-term reliability
- Global compliance readiness
Applications
- Hard Biscuit Lines
- Soft Biscuit Lines
- Cream & Sandwich Biscuit Production
- High-Capacity Export-Oriented Factories
- Plant Automation Upgrades
Why Choose Our Engineered System?
Unlike standalone equipment suppliers, we provide a complete integrated biscuit plant material handling system designed for seamless coordination between all subsystems.
We offer:
- Custom plant layout design
- Turnkey project execution
- Capacity planning
- Energy optimization
- On-site commissioning
- After-sales service & AMC
Our solution is engineered for long-term industrial performance and scalable expansion.
Frequently Asked Questions
Conclusion
Upgrade Your Biscuit Manufacturing Efficiency Today
Whether you are planning a new biscuit manufacturing plant or upgrading your existing facility, our Raw Material Handling System for Biscuit Manufacturing Plant delivers precision, hygiene, and profitability.
Contact Knitcon Solutions engineering team today to design a customized solution for your plant capacity.
